CARA PASANG GACUN DI TV



Bagi rekan - rekan yang belum tahu cara pasang gacun saya akan coba berbagi caranya:

1.angkat Tr / Str regulator yang asli pada mesin
2. perhatikan jalur pada regulator, lihat trafo converter, cari jalur 300volt+
yang masuk ke trafo, dan yang arah ke Tr /  Str asli ( kolektor )

Gbr Tr yg akan di ganti Gacun

3.pasang kabel warna merah gacun di kaki kolektor Tr / Str ( 300+out trafo cvtr)


4.pasang kabel hitam pada ground

Gbr;Gacun pada transistor / Str

5.colok listrik, dan ukur tegangan output ( 115 volt )
6.bila tegangan kurang atau ndut2 an trim trimpot pada gacun pelan2 sampai tegangan
tidak drop atau sesuai kebutuhan
7.perhatikan gambar pada tv, bila newstiker logo stasiun tv sudah pas artinya tegangan udah
bagus
8.terakhir standby kan tv pada remot dan ukur lagi teg.115+ bila tagangan melonjak
ke 150 volt, ganti elko 200/160 jadi 220/200 biar aman

Dalam pemasangan modul switching pada regulator yang perlu diperhatikan adalah rangkaian RC harus disesuaikan dengan karakter modul, nilai Resistor 22 - 47 ohm (5Watt) dan Capasitor 470 - 1000pf  (1KV - 2KV).

Sebagai tambahan untuk menghindari panas berlebih / overheat dan menjaga ketahanan modul, bisa dilakuakn pemasangan diatas spec modul misal Tv 21" pasang modul 25", 25" pasang modul 29" dan seterusnya.

Ok.tanks

               DIODA

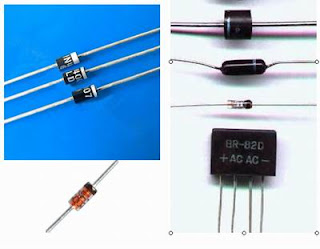

Dioda adalah komponen elektronik yang terbuat dari unsur semikonduktor. Bahan ini adalah silikon atau germanium. Dioda silikon bekerja pada tegangan 0.6 VDC dan dioda germanium bekerja pada tegangan 0,2 VDC.

Contoh dioda : IN 4148, IN4002, IN 4003, dll.


Simbol Dioda adalah D, simbol gambarnya :



Sifat dioda :

• Jika diberi arah maju (tegangan positif => anoda dan tegangan negatif => katoda) akan menghantarkan arus dan sebaliknya,


• Jika diberi arah mundur (tegangan positif => katoda dan tegangan negatif => anoda) tidak akan menghantarkan arus.


Fungsi Dioda :

• Sebagai penyearah
• Sebagai pengaman rangkaian dari kemungkinan terbaliknya polaritas

Mengukur Dioda Dengan Multitester

Putar batas ukur pada Ohmmeter X10 / X100



1. probe merah => katoda, probe hitam => anoda => Jarum bergerak bukan nol.
kemudian posisi dibalik :
probe merah => anoda, probe hitam => katoda, Jarum tdk bergerak
berarti dioda dalam kondisi BAIK.


2. probe merah => katoda, probe hitam => anoda => Jarum bergerak atau menunjuk nol.
kemudian posisi dibalik :
probe merah => anoda, probe hitam => katoda => Jarum bergerak atau menunjuk nol
berarti dioda dalam kondisi RUSAK / SHORT.



4. DIODA ZENERTerbuat dari bahan silikon. Biasanya digunakan pada rangkaian power supply dimana fungsinya adalah sebagai penstabil arus. Meskipun arus AC yang dirubah ke DC berubah-ubah, tidak akan berpengaruh jika terdapat dioda zener ini.

Adapun sifatnya adalah sebagai berikut :

• Tegangan yang dicapai maksimal rata-rata 0,7 s/d 12 volt
• Hanya tahan terhadap arus kecil, maksimal 1 s/d 50 mA
• Hampir tidak ada tegangan yang hilang jika sudah melewati dioda zener.

Contoh dioda zener : zener 6 volt, zener 12 volt, dll



Pengukuran baik tidaknya dioda zener sama dengan pengukuran dioda biasa.

Aplikasi dalam rangkaian :









          DIODA ZENER



BEBERAPA EQUIVALEN DIODA ZENER

MTZJ9.1A = RD9.1ESA B1 = UZ9,1BSA
MTZJ10A = RD10ESA B1 = UZ10BSA
MTZJ12A = RD12ESA B1 = UZ12BSA
MTZJ12B = RD12ESA B2 = UZ12BSB
MTZJ8,2B = RD8.2ESA B2 = UZ8.2BSB
MTZJ6.2B = RD6.2ESA B2 = UZ6.2BSB
MTZJ5.6B = RD5.6ESA B2 = UZ5.6BSB
MTZJ18B = RD18ESA B2 = UZ18BSB
MTZJ16B = RD16ESA B2 = UZ16BSB
MTZJ27C = RD27ESA B3 = UZ27BSC
IN4148 =1SS131


SHARP DIODE ZENER

EX0338CE=22V
IX0037CE=33V
EX0092CE=3,9V
EX0152CE=120V
EX0310CE=8,2V
EX0639CE=3,9V
EX0341CE=3V
EX0197CE=13V
EX0292CE=4,7V
EX0326CE=16V
EX0320CE=12V
EX0019TA=12V
EX0041TA=9,1V
EX0156CE=10V
EX0294CE=5,1V
EX0182CE=22V
EX0293CE=5,1V
EX0297CE=5,1V
EX0303CE=8,2V
EX0298CE=5,6V
EX0322CE=12V
EX0628CE=8,2V
EX0323CE=13V
EX0288CE=4,3V
EX0301CE=6,2V
EX0615CE=5,6V
EX0348CE=3V
EX0150CE=9V
EX0022TA=11,5V
EX0048CE=6,2V
EX0074CE=115V

Data tegangan ZENER DIODE tipe IN 400mW

1N746 3.3V 400mW
1N747 3.6V 400mW
1N748 3.9V 400mW
1N750 4.7V 400mW
1N751 5.1V 400mW
1N752 5.6V 400mW
1N753 6.2V 400mW
1N754 6.8V 400mW
1N755 7.5V 400mW
1N756 8.2V 400mW
1N757 9.1V 400mW
1N758 10V 400mW
1N962 11V 400mW
1N963 12V 400mW
1N964 13V 400mW
1N965 15V 400mW
1N966 16V 400mW
1N967 18V 400mW
1N968 20V 400mW
1N969 22V 400mW
1N970 24V 400mW
1N971 27V 400mW
1N972 30V 400mW
1N973 33V 400mW

Data tegangan ZENER DIODE tipe IN 1W

1N4728 3.3V 1W
1N4729 3.6V 1W
1N4730 3.9V 1W
1N4732 4.7V 1W
1N4733 5.1V 1W
1N4734 5.6V 1W
1N4735 6.2V 1W
1N4736 6.8V 1W
1N4737 7.5V 1W
1N4738 8.2V 1W
1N4739 9.1V 1W
1N4740 10V 1W
1N4741 11V 1W
1N4742 12V 1W
1N4743 13V 1W
1N4744 15V 1W
1N4745 16V 1W
1N4746 18V 1W
1N4747 20V 1W
1N4748 22V 1W
1N4749 24V 1W
1N4750 27V 1W
1N4751 30V 1W
1N4752 33V 1W
1N4753 36V 1W

 IC VERTIKAL

LA 7840=

TDA  9032
LA  78040
An  2255
X  0640  C
TDA  3652 B
TDA  3652 C
An  5512
KA  2131
TDA  3651 A
TDA  3651 Q
TDA  3653
LA  7837
LA  7838

STV9302A( 1.8A)

LA78040 (1.8A)

STV9302B

AN5522

STV9378(1.8A) <

TDA9302H

LA78045(2.2A)

TDA8178(2A)

LA78141

stv9379(2.6A)

STV8172

STV9326

TDA8172(2.5A)



LA7840(1.8A) < la7841 < LA7845(2.2A)=beda fisik dan kaki LA78041(2.2A)

LA7837(1.7A) < LA7838(2.2A)

LA7846(MAX 3A)

IX 0640CE=LA7830(1.8A) < LA7832(2.2A)

TDA4863AJ(3A) < TDA4865J(3.8A)

TDA8357J(2A) < TDA8359J(3.2A)

TDA8356(2.2A)

DATA PERSAMAAN IC VERTIKAL TV DAN MONITOR
                (VERTIKAL AMP DEFLEKSI OUTPUT)

STV9302A( 1.8A)= LA78040 (1.8A)=STV9302B=AN5522= STV9378(1.8A) < TDA9302H =LA78045(2.2A)=TDA8178(2A)=LA78141=stv9379(2.6A)=STV8172=STV9326=TDA8172(2.5A)

LA7840(1.8A) < la7841 < LA7845(2.2A)=beda fisik dan kaki LA78041(2.2A)

LA7837(1.7A) < LA7838(2.2A)

LA7846(MAX 3A)

IX 0640CE=LA7830(1.8A) < LA7832(2.2A)

TDA4863AJ(3A) < TDA4865J(3.8A)

TDA8357J(2A) < TDA8359J(3.2A)

TDA8356(2.2A)

TDA3653B = beda pisik kependingin TDA3653C(1.5A)

TDA4866(2A) < TDA4867J(2.5A)

TA8403K(1.8A) =KIA8403K(1.8A) < TA8427K=2.2A(TOSHIBA)

TA8445K(MAX 2.2A)

AN5515(1.3A) < AN5521(1.8A)

UPC1498H

Tip & triks servis UPS http://agusmetrix.blogspot.com/

Tip & triks servis UPS                                                                                                    http://agusmetrix.blogspot.com/

Berikut ini ciri UPS yang Accunya rusak :

1. UPS nyala, tapi pada saat listrik mati langsung ikut mati tidak bisa menyimpan listrik. misal merk ICA

2. UPS tidak mau dinyalakan. Ini ciri dari UPS dengan merk tertentu, misal APC, dll

Jika anda mempunyai UPS dengan kerusakan seperti itu, berikut cara servicenya :

Cara Servis UPS yang Tidak Bisa Menyimpan Listrik :

1. Bongkar UPS nya

2. Cabut sambungan kabel ke Accu.

3. Catat ukuran Accunya, Accu menggunakan Accu Kering dan biasanya ukurannya 12v 7,2A.
4. Kalau anda masih ragu-ragu, accunya rusak atau tidak, maka ambil accu sepeda motor anda (tentunya yg masih bagus) dan coba sambungkan ke UPS tadi, menggunakan sambungan accu yg lama. Jangan sampe kebalik polaritas kabelnya, negatif dapat kabel hitam, dan positif dapat kabel merah.

5. Kemudian nyalakan UPS, kalau nyala normal, berarti anda tinggal membeli sparepart accu kering sesuai dengan accu UPS anda. Untuk Accu yg rusak dpat anda jual dengan harga 15 ribu-an. Kisaran harga accu kering 12v 7,2A sekitar 175 ribu-an.

                                  UPS 100 - 5000W

 PERSAMAAN IC TV DENGAN CODE TERTENTU


* IC INI BANYAK TERDAPAT PADA TV -:



PANASONIC=ANxxxx/dll
TOSHIBA=TAxxxx/dll
SHARP=IXxxxx
SANYO=LAxxx/dll
SANKEN=SKxxxx/dll
ECG=xxxx
NTE=xxxx


CODE IC YANG TERDAPAT PADA TV DAN CODE ASLINYA




IX0002= TA7063
IX0003= LM339= CA339= 834
IX0004CE= TA7074= UPC1355= 749
IX0005CE= TA7208P= 1476
IX0005PA= DM7476= M53276= 7476
IX0007= TA7169
IX0009= SN7410= 7410
IX0010= SN74193= 74193
IX0011= SN7420N= 7420
IX0012= SN7404N= 7404
IX0013= SN7416= IPC556= 7416
IX0015= VPC1031N-UPC
IX0017= CA3065= LA1365= 712
IX0020CE= TA7070= LA1364= 1004
IX0021CE= 1080
IX0022CE= 1051
IX0023CE= AN260= SK3495= 1079
IX0024CE= TA7102P= 1105
IX0025CE= UPC562= SK3475= 1050
IX0031= TA7141
IX0032CE= UPC29C= SK7767= 1089
IX0034= TA7170
IX0035= TA7069= 1101
IX0037CE= UPC574= 615A
IX0038= HA1184
IX0042CE= TA7069
IX0043CE= LA1365= HA1124= 712
IX0047CE= HA11112= 1189
IX0048= HA11113
IX0053= UPC1009
IX0054CE= UPC575= SK3473= 1140
IX0065CE= HA11235= SK9249= 1550
IX0069CE= CD4001B= MC14001B= 4001B
IX0072CE= CD4011B= 4011B
IX0080CE= 4071B
IX0087TA= LB1405S= 1515
IX0091CE= TA7611= IX0092CE= 1413
IX0092CE= TA7611= TDA2540= 1413
IX0094CE= TA7609= KA2921= 1496
IX0101TA= AN5265= 1789
IX0109CE= TA7193
IX0111CE= UA7805= LM78M05= 960
IX0113= TA7611= KA2916= 1413
IX0114PA= 4514B
IX0116CE= T7407= N7407= 7407
IX0121CE= TA7670= 1671
IX0137CE= T2508= 1751
IX0178CE= TDA3570= UPC1352= 1416
IX0187= M58484P
IX0199CE= UPD1987C= UPD1937C= 1759
IX0203= LA7910= 1658
IX0211= M51355P=
IX0212CE= TA7670= SK7841= 1671
IX0213CE= UPC1382= KAA1382C= 1616
IX0214CE= TA7630= KIA6930P= 1576
IX0215CE= UPC1365
IX0223CE= TA7680= KA2914= 1572
IX0224CE= TA7681= 1570
IX0225CE= LA4440= 1377
IX0238CE= uPC1378H= 1676
IX0243CE= LA7802= SK9404= 1539
IX0246CE= AN156= UPC574J= 615A
IX0252CE= TA7611= KA2916= 1413
IX0260CE= LA7910= KA7910= 1658
IX0274CE= STR5015
IX0275CE= TA7680= KA2914= 1572
IX0275CE= TA7681= 1570
IX0276CE= TA7680= KA2914= 1572
IX0292= TA7611= KA2916= 1413
IX0310PA= UPC1373M
IX0325CE= STK7308= SK10161= 1870
IX0365CE= LA4265
IX0406= UPC1403
IX0416CE= 1792
IX0437AG= TA7129= 1462
IX0439CE= M58658P=
IX0450CE= AN5352= SK9728= 1835
IX0487CE= 1794
IX0488CE= LA3350= 1217
IX0498CE= AN5521= 1782
IX0499CE= uPC1253H2= SK9879= 1795
IX0600CE= TA7777= TA8677N= 1790
IX0601= TDA4501
IX0602= TDA4501
IX0606= STK7358= 7033
IX0633CE= EW84X977= 7014
IX0638CE= AM78M05= LM78M05= 960
IX0640= LA7830= 1773
IX0640CE= AN5515= 1684
IX0689= STK7359= IX0731
IX0711= M51346AP
IX0717CE= 1847
IX0731CE= IX0689CE= STK7359
IX0928= TDA3562
IX0934CE= LA4270= 1798
IX0948CE= AN5521= SK9730= 1782
IX0975CE= SAA5231
IX0984CE= AN5521= 1782
IX1007A= LA3350= 1217
IX1012AF= uPC577H= MB3202M= 1082
IX1013AF= uPC566H= 1052
IX1014AF= HA12003= BA1310= 1226
IX1020AF= SK3917= CA810= 1115
IX1030AF= HA1151= HA11516= 1237
IX1032AF= HA1151= HA11516= 1237
IX1038AF= TC5081P= 1208
IX1039AF= TC5082P= 1197
IX1053AF= HA1196= 1484
IX1066AF= 1354
IX1068AF= TA7310= KIA7310= 1192
IX1070AF= TA7205= KIA7205= 1155
IX1073AF= UPD861= HD42851= 1254
IX1077CE= TA8654= 7058
IX1078CE= TA8601BN= 7065
IX1086AF= AN7218= KA1018= 1563
IX1089A= STK082= 1327
IX1112CE= STK4121-II= 1874
IX1116AF= BA328= MB3106= 1659
IX1118= STR5441=
IX1118CE= STRD5441=
IX1121CE= AN278= EW84X585= 1448
IX1135CE= LA4260= 1685
IX1146AF= 4011B
IX1152BM= TEA2164
IX1153BM= TEA2029C
IX1157BM= TDA8451
IX1158BM= TDA8452
IX1159BM= TDA8390
IX1162BM= TDA8153
IX1163BM= TDA8170
IX1184BM= L7805CV= 960
IX1185BM= L7812CV= 966
IX1179= STK73907
IX1190CE= TA8680N= IX1712CE 7010
IX1207CE= TDA3566
IX1208CE= TDA8305
IX1224CE= TA8403= 7158
IX1291= STK73408II
IX1311CE= 7065
IX1703= TMP47C635N3942
IX1705CE= LA7670= 7054
IX1712CE= TA8680N= IX1190CE= 7010
IX1791CE= STK73907T
IX1828= LA7680
IX2154= LA7670= 7054
IX2169CE= LA7670= 7054
IX2429CE= TA1242N= TA1201N= 7151
IX2573CE= TA1201= KA2163B
IX2701CE= TA1201BN= KA2163
IX3253CE= TA1268N= 7149
IX3354CE= LA76843
IX5109= TA7193= KA2151

Componen Electrónic & simbolnya NAMA COMPONEN SIMBOL NAMA COMPONEN SIMBOL Resistor Condensador Baterai Lilitan kawat Dioda Potensio Transistor Trafo Diac Relay Triac Tiristor Díodo Zener Válvulas

Pin Flyback dilihat / dihitung dari bawah searah jarum jam.

1. AKARI / FUJITEC China

* 14" BSC 22 - 01N401
* 14" BSC25 - 1194
* 20/21" BSC25 - 4803T
* 14" BSC22 - 2007 (B+125)
* 20" BSC25-N0803A

COL_B+115V_NC_AFC_GND_H_ABL_NC
2. AKIRA

* 14" JF0501 - 1901
* 21" BSC23 - N0114

COL_B+115V_GND_185V_H_ABL_GND_16V_NC_24V

AKIRA Vert +14v dan -14v

* 21" JF0501 - 19959
* 21" BSC25 - 0235A

COL_B+115V_+14V_-14V_GND_H_AFC_ABL_NC_185V

AKIRA / FUJITEC IC8893CPBNG.......

* 21" BSC25 - 05N2135H
* 21" BSC25 - N0379

COL_B+115V_NC_AFC_GND_H_ABL_180V

3. AIWA 14/20"

* 84-L83-606-01
* FTK 14B011

COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V

4. DETRON

* 14" 154 - 164F
* 20" 154 - 165D

24v_14v_B+115V_H_AFC_ABL_GND_185V_NC_COL

5. SHARP

* 14" F0067PE
* 20" F0069PE

COL_B+115V_24V_16V_NC_AFC_GND_H_185V_ABL

* 21" F0147PE

COL_B+115V_GND_24V_12V_AFC_185V_GND_H_ABL

* 14" F0193 / 21"F0194

Col_B+115V_GND_40V_12V_AFC_185V_GND_H_ABL
6. SHARP picollo

* 14" BSC26 - 2631S / FA060 WJ - SA
* 21" JF0501-32601 / A071WJ - A

COL_B+125V_GND_24V_12V_AFC_185V_GND_H_ABL

7. GOLDSTAR / LG / AKARI / INTEL

* 154-177B
* 154-064P
* 6174-8004A (kadang 12V/16V gak ada)
* 6174Z-6040X

COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC

* 154-177E

COL_185V_B+90v_BOOST UP_25V_12V_GND_ABL_H_AFC

8. JVC

* 21" BSC25 - 0262

COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND
JVC AV20NX

* 21" JF0501 - 3241 / QQ0189 - 001

Col_B+115v_ AFC_-12V_+12V_Gnd_HT_ABL_185v_Gnd

9. FUJITEC lama

* 14" bsc22 - 2314H

COL_B+115V_180V_16V_24V_H_GND_ABL_AFC_NC
10. PANASONIC lama:

* 20" TLF 4N052

Col_B+115v_Nc_24v_H_180v_Gnd_Gnd (R2W 1 ohm)_16v_ABL

* ZTF N82014B

Col_B+140v_Nc_+16v_Gnd_H_Gnd_ABL_-16v_ 180v

11. SANSUI

* JF051 - 1206

COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC

12. LG

* 20": 6174 - 6006E

Col_185v_B+115V_Gnd_-14v_+14v_Gnd_ABL_H_AFC

* 21" 6174V-6006H (Flat & Super Slim)
* 21" BSC24-3366J (Super Slim)

COL_185V_B+115V_GND_Nc_24V_Nc_ABL_H_AFC

* 29" 6174Z - 5003A

Col_B+115v_+14v_-14v_200v_Gnd_Nc_28v_ABL_H


LG ultra Slim


* 21" BSC25-N0363
* 29" BSC26-N2138

Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H

13. TOSHIBA

* 14" TFB 4067 BD
* 21" TFB 4125CH
* 29" TFB 4086A

COL_B+115V_185V_GND_NC_24V_12V_ABL_H_AFC
14. POLYTRON / DIGITEC

* 20" FCM 20 B 061N
* 21"JF 0501- 19577

COL_B+115V_GND_NC_185V_H_NC_ABL_+12V_-12V


* 21" JF0501-195913

Col_B+115V_Gnd_185v_Nc_H_25v_Bcl_12v_Afc

15. POLYTRON lama

* 14" FCK 14A006
* 20" FCM2015H
* 20" FTK21R002

NC_NC_GND_185V_16V_H_24V_ABL_B+115V_COL
16. SAMSUNG

* FSV 14A004
* FSV14A001
* FSV20A001

16,5V_AFC_H_24V_180V_GND_NC_ABL_B+125V_COL

* FOK14A001
* FSV-14A004C
* AA26-002101A


+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL

* 14/21" Flat FOK14B001

Col_NC_B+123V_NC_200V_Gnd_H_-16,5V_+16,5V_ABL
17. TV China

* BSC 25 Z 603F
* BSC 25 - 4813A

TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_NC
18. TV China

* BSC 25 - 2004PR

COL_B+115v_NC_AFC_GND_H_ABL_NC_TP1_TP2

* BSC24-01N4014K
* BSC25-T1010A

T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

19. SANYO

* 21" L 40 B 15300 / L40B17100
* JF0501-32639 (SANYO SLIM 21")

COL _B+115V_NC_185V_AFC_ABL_NC_LOW B_H_GND

SANYO SLIM FLAT 29"

* BSC26-2629S part no: ILB4L40B07500

Col_B+140v_Nc_Video 185v_Afc_Abl_Nc_Low B_H_Gnd
Tr Hor D2634
20. TCL

* 21" BSC 25 - 0299D
* JF0501-1914
* BSC25 - 0231


185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H

21. TV China

* 29" BSC26 - 3606A

Col_B+115V_NC_AFC_GND_H_ABL_T1_T2_T3
22.TV China

* 29" BSC28 - N2329

Col_TP2_B+115V_GND_185V_NC_NC_ABL_H_AFC
23. TV SAMSUNG

* 29" FUH29A001 /
* SAMSUNG FLAT SLIM JF0501 - 91911 (FQH29A003)
* 21" SLIM FQH21A004 (FUH29A001B (S) )

COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL


24. KONKA

* 14" BSC25-2023S
* 14" BSC25 - 0106
* 21" BSC25-2666S
* 20" BSC25-0111

COL_185V_B+115V_GND_AFC_14V_ABL_H_NC_NC
25.SONY

* 8-598-858-00
* 8-598-831-00
* 8-598-811
* 1-453-284-11

COL_B+_200V_H_GND_-13V_GND_+13V_NC_ABL

26. RCA
14" 6174Z - 8006A

B+110_Col_6.5V_Gnd H_H_Abl_-12V_Gnd_180v_+12v


FSV 14A001 ( SAMSUNG )
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_H_46V_185V_GROUND_NC_ABL_B+125V_COL

154-064P ( GOLDSTAR )
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_H_AFC

154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_H_AFC

FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_H_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL

DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_H


FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_H_ABL_GROUND_AFC_15V

FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_H

JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_H_ABL_GROUND_15V_AFC_24V

JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_H_GROUND_ABL_AFC_NC

FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL_B+_GROUND_200V_NC_H_NC_ABL+12v_-12v

JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_H_GROUND_ABL_AFC_NC

L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND

L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V

L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL

L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V

6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC

BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_H_ABL_NC

BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_H_ABL_180V

BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC

BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC

BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC

TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC

FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL

154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC

FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC

FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_

154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H

CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC

CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL

FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H

BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC

BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC

BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC

F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194= 16V)

F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H

F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL

F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL

FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL

FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL

FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL

154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC

BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC

8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL

QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_GROUND_H_ABL_180V_GROUND

JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse

BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_H_46V_180V_GROUND_NC_ABL_B+125V_COL

FTK 14A004F(S) (SAMSUNG)
16,5V_24V_H_-16,5V_185V_GROUND_NC_ABL_B+125V_COL

8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_H_GROUND_(-13V)_GROUND_(+13V)_NC_ABL

FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_H_BCL_+12V_-12V

JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_H_GROUND

Persamaan/data pin flyback Tv

154-064P
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc

154 - 132A
154 - 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v

154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc

8-598-858--00
8-598-811
C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl

BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v

BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc

DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater

F 0101KM-SA
F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl

FCK 14A006
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl

FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v

FCG 2045 BL
Afc - 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v

FCM-20B061N (polytron)
C_B+_gnd_185_nc_Ht_Nc_abl_+12_-12

FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C - B+ - Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater

FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc

FSV - 20A001
FCK - 14A033
FSV - 14A001
C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5

FTK-14A004P (samsung)
C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5

JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc

JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12

MC - FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl

TFB 4125 DY (tosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

K 148 TC
C - 180v _ B+ - Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc

PENGANTI PLAYBACK TV--- Saat servis Tv dengan kerusakan Playback terkadang menemui Playback yang terpasang sudah hilang nomer serinya atau nomer seri playback asli yang rusak tadi dicari-cari di pasaran tidak ada, sehingga kesulitan didalam menemukan plyback penganti. Dibawah ini adalah data-data persamaan playback tv yang bisa di gunakan sebagai rujukan didalam mencarikan Playback pengganti. Data diambil dari Blog Alextro Servis, Brikut datanya beserta urutan pin/kaki-kakinya:

Pin Flyback dilihat / dihitung dari bawah searah jarum jam.

AKARI / FUJITEC China

• 14" BSC22 - 01N401
• 20" BSC24 - 01N40TA
• 14" BSC25 - 1194
• 20/21" BSC25 - 4803T
• 14" BSC22 - 2007 (B+125)
• 20" BSC25-N0803A

COL_B+115V_NC_AFC_GND_H_ABL_NC

AKIRA

• 14" JF0501 - 1901
• 21" BSC23 - N0114

COL_B+115V_GND_185V_H_ABL_GND_16V_NC_24V

AKIRA Vert +14v dan -14v

• 21" JF0501 - 19959
• 21" BSC25 - 0235A
• BSC25-4004A
• BSC25-N 0103
• BSC24-01N4004U

COL_B+115V_+14V_-14V_GND_H_AFC_ABL_NC_185V

AKIRA CT-29TK9Ae

• JF0501-2202


Col_B+125v_Afc/Nc_-12v_+12v_Gnd_H_Abl_Gnd_180v

AKIRA Slim 29"

• BSC29-N2477

Col_180v_B+130v_Gnd_Nc(14v)_25v_Nc(Gnd)_Abl_H_Inner

AKIRA / FUJITEC IC8893CPBNG.......

• 21" BSC25 - 05N2135H
• 21" BSC25 - N0379
• 21" BSC25 - 3604V

COL_B+115V_NC_AFC_GND_H_ABL_180V


• BSC22-68F03
• BSC25-N0449

COL_B+115V_24v_AFC_GND_H_ABL_180V

ASATRON Slim

• 21" BSC25-N1089D

Col_B+115v_+17v_Afc_Gnd_H_Abl_Nc_180v_-17v

AIWA 14/20"

• 84-L83-606-01
• FTK 14B011

COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V

DETRON

•  14" 154 - 164F
•  20" 154 - 165D
• 20" JF0501-1212

24v_14v_B+115V_H_AFC_ABL_GND_185V_NC_COL

SHARP

• 14" F0067PE
• 20" F0069PE

COL_B+115V_24V_16V_NC_AFC_GND_H_185V_ABL

• 21" F0147PE

COL_B+115V_GND_24V_12V_AFC_185V_GND_H_ABL

• 14" F0193 / 21"F0194

  Col_B+115V_GND_40V_12V_AFC_185V_GND_H_ABL

SHARP Picollo, Expression, Alexander

• 14" BSC26-2631S / FA060 WJ - SA
• 14" BSC21-2672S/ FA084WJ-B
• 21" JF0501-32601 / FA071WJ - A
• 21" BSC25-0232A / FA104WJZZ
• 21" BSC24-2688S / FA113WJ-B

COL_B+125V_NC_24V_12V_AFC_185V_GND_H_ABL

• 29" FA100WJ / FA116WJ

Col_B+125v_Gnd_Nc_+14v_-14v_180v_Gnd_H_Abl

GOLDSTAR / LG / AKARI / INTEL

• 154 - 177B
• 154 - 064P
• 154 - 374C (29 inch)
• 6174 - 8004A
• 6174Z - 6040X
• MF6549
• FCM - 20B058

COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC

• 6174Z - 6040C (LG Turbo Swing 21")

Col _185v_B+115v_Gnd_-14v_+14v_Nc_Abl_Ht_Afc

• 154 -177E

COL_185V_B+90v_BOOST UP_25V_12V_GND_ABL_H_AFC

JVC

• 21" BSC25 - 0262

COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND

JVC AV20NX

• 21" JF0501 - 3241 / QQ0189 - 001

 Col_B+115v_ AFC_-12V_+12V_Gnd_HT_ABL_185v_Gnd

FUJITEC lama

• BSC22 - 2314H
• JF0501-1903
• FCM14A032
• KFS 60844

COL_B+115V_180V_16V_24V_H_GND_ABL_AFC_NC

HITACHI FUJIAN

• BSC25 - 0820

Col_B+115_Nc_Nc_25v_12v_Abl_Ht_Gnd_180v

PANASONIC

• TLF14695F/Alpha Gold
• TLF 15610 F
• TLF 15611 F
• KFS60844

Col_B+_Gnd_PS sink -_25v_Ht_185v_Abl_Nc_PS sink+

• 20" TLF 4N052

Col_B+115v_Nc_24v_H_180v_Gnd_Gnd  (R2W 1 ohm)_16v_ABL

• ZTF N82014B

Col_B+140v_Nc_+16v_Gnd_H_Gnd_ABL_-16v_ 180v

• 21" G4GAM3F2

Col_B+90v_180v_Nc_Nc_Nc_Nc_Abl_Gnd_Ht

SANSUI

• JF0501 -1206
• JF0501-1204

COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC

LG

• 20": 6174 - 6006E

Col_185v_B+115V_Gnd_-14v_+14v_Nc_ABL_H_AFC

• 21" 6174V-6006H (Flat & Super Slim)
• 21" BSC24-3366J (Super Slim)
• 21" BSC25-N0329
• 21" 154-064P (persamaan)

COL_185V_B+115V_GND_Nc_24V_Nc_ABL_H_AFC

• 29" 6174Z - 5003A
• 29" BSC28 - N2334

Col_B+115v_+14v_-14v_200v_Gnd_Nc_28v_ABL_H

LG ultra Slim

• 21" BSC25-N0363
• 29" BSC26-N2138

Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H

LG super slim

• 6174913002A
• BSC24-3366J

COL_185V_B+115V_GND_Nc_24V_Nc_ABL_H_AFC

TOSHIBA

• 14" TFB 4067 BD
• 20" TFB 4122 BD
• 20" TFB 4122 HY
• 21" TFB 4125 CH
• 21" TFB 4213AG (Flat)
• 29" TFB 4086A

COL_B+115V_185V_GND_NC_24V_12V_ABL_H_AFC

POLYTRON / DIGITEC

• 20" FCM 20 B 061N
• 21"JF 0501 - 19577
• 21" JF0501 - 19584

COL_B+115V_GND_NC_185V_H_NC_ABL_+12V_-12V

• 21" JF0501-195913
• 21" FTK-21R011UN

Col_B+115V_Gnd_185v_Nc_H_25v_Bcl_12v_Afc

POLYTRON lama

• 14" FCK 14A006
• 20" FCM2015H
• 20" FTK21R002

NC_NC_GND_185V_16V_H_24V_ABL_B+115V_COL

SAMSUNG

• FSV 14A004
• FSV14A001
• FSV20A001

16,5V_AFC_H_24/40V_180V_GND_NC_ABL_B+125V_COL

• FOK14A001
• FSV-14A004C
• FSV-14A004H
• FSA-38031M
• FSA-38032M
• FSA 173 B
• AA26-002101A

 +16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL

• 14/21" Flat FOK14B001

Col_NC_B+123V_NC_200V_Gnd_H_-16,5V_+16,5V_ABL

• 21" FUH29A001A (S)

Col_Nc_B+130v_Nc(widht)_200v_Gnd_H_-16,5v_+16,5v_Abl

TV China

• BSC 25 Z 603F
• BSC 25 - 4813A
• BSC 25 - N1003A
• BSC25 - N0608

TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_NC(180V)

• BSC24-014001D
• BSC25-N0321
• BSC25-N1534
• BSC25-N1634
• BSC25-Z1003
• BSC25-Z2705
• BSC25-Z2706
• BSC25-N0313
• BSC25-F1125A

TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_AFC

TV China

• BSC 25 - 2004PR

COL_B+115v_NC_AFC_GND_H_ABL_NC_TP1_TP2

• BSC24-01N4014K
• BSC25-T1010A

T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

DIAMOND (Tv China)

• BSC24 - 2231HC

Col_B+115_40v_14v_Gnd_Afc_Abl_Ht_180v_Nc

SANYO

• 21" L 40 B 15300 / L40B17100
• JF0501-32639 (SANYO SLIM 21")

COL _B+115V_NC_185V_AFC_NC_ABL_LOW B_H_GND

SANYO SLIM FLAT 29"

• BSC26 - 2629S part no: 1LB4L40B07500
• BSC26 - 2670S / 1LB4L40808000 (Flat)

 Col_B+140v_Nc_Video 185v_Afc_Nc_Abl_Low B_H_Gnd

 Tr Hor D2634

TCL

• 21" BSC25 - 0299D
• 21" BSC25 - 0273F
• 21" JF0501-1914
• BSC25 - 0231
• 21" BSC25-0284C
• BSC 66G (124-3810)
• BSC25-0211
• JF0501-1909A
• JF0501-1214

185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H

• 21" BSC25 - 0252S

Col_B+_NC_NC_NC_AFC_GND_ABL_200V_HT

TV China

• 29" BSC26 - 3606A

Col_B+115V_NC_AFC_GND_H_ABL_T1_T2_T3

• 29" BSC28 - N2329
• 29" BSC29 - T6018N

Col_TP2_B+115V_GND_185V_NC_NC_ABL_H_AFC

• 29" BSC26 - N0670
• 29" BSC27 - KLX29
• 29" BSC26 - 01N

Tp1_Col_Tp2_B+_Nc_Tp3_Gnd_Ht_Abl_180v

TV SAMSUNG

• 29" FUH29A001 (B+ 135v)
• SAMSUNG FLAT SLIM 29" JF0501 - 91911 (FQH29A003) (B+125v)
• 21" SLIM FQH21A004 / BSC25-0217G / AA26-00305A / FUH29A001B (S) (B+120/125V)

COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL

KONKA

• 14" BSC25-2023S
• 14" BSC25 - 0106
• 21" BSC25-2666S
• 20" BSC25-0111

COL_185V_B+115V_GND_AFC_14V_ABL_H_NC_NC

•  21" BSC25-0146


 Col_185v_B+115_Gnd_Nc_Nc_Abl_Ht_Gnd_Afc

SONY 21"

• 8-598-858-00
• 8-598-831-00
• 8-598-811
• 1-453-284-11
• 8-598-960-00

COL_B+_200V_H_GND_-13V_GND_+13V_NC_ABL

SONY  Trinitron

• 29" 1-439-423-32

H1_H2_180v_B+_Col_14V_Abl_Nc_26v_Nc_Gnd

RCA

• 14" 6174Z - 8006A

B+110_Col_6.5V_Gnd H_H_Abl_-12V_Gnd_180v_+12v

PHILIPS

• 29" JF0501 - 9185
• BSC25 - N2319
• BSC25 - N2911

Col_B+125v_180v_Afc_H_8v_12v_ABL_45v_Gnd

SANKEN

• 21" BSC24-01N4004U
• JF0501 - 19959
• BSC25 - 0235A
• BSC25-N 0103

Col_ B+115_+14V_-14V_Gnd_Ht_Afc_Abl_Nc_180v

 Tv China

BSC25-F1126A

BSC24-014001D

BSC25-N0321

BSC25-N1534

BSC25-N1634

BSC25-Z1003

BSC25-Z2705

BSC25-Z2706

BSC25-N0313

TP1_.COL_TP2_B+115v_TP3_TP4_GND_H_ABL_AFC

SAMSUNG 21 SLIM FQH21A004

BSC 25-0218N

BSC25-0217G / AA26-00305A

FUH29A001B (S) (B+120/125V)

COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL
